feat: first-class Tailcat networking and server-to-server federation

[BearHuddleston]

Problem

Reaching a T3 server on another machine today needs a LAN address, a tailnet, a manually managed SSH tunnel, or T3 Connect. Users on different networks without a VPN account have no first-class path, and two T3 environments cannot coordinate work with each other at all.

What this adds

Tailcat (the open-source point-to-point tunnel CLI) becomes a first-class, bundled transport, with server-to-server federation built on top of it. Tailcat is a transport underneath T3, never a trust boundary: it exposes the unchanged loopback listener, and pairing, sessions, scopes, and RPC run inside it exactly as before. The Tailcat allowlist is derived from T3 pairing state and never edited on its own.

Server (Machine B)

• t3 serve --tailcat, or the new Remote access via Tailcat card in Settings → Connections, exposes the loopback listener through tailcat serve. Identity is a 0600 key file in the secrets dir with a fixed relay region, so the address is stable across restarts.
• One-time connection codes (t3c://tailcat/…, text + QR) carry the address, port, and a single-use five-minute pairing token. Never a private key or reusable secret.
• The listener runs open only while an unredeemed code exists; otherwise it runs with exactly the trusted node keys. Trust is recorded during the ordinary /oauth/token exchange when the redeemed credential was a Tailcat code and the client sent its node key (client_tailcat_node_key). Revoking a trusted device revokes its sessions and relocks the listener. Regenerate identity, rename, revoke, diagnostics, and a typed failure model (binary-missing, version-incompatible, process-exited, …) with jittered backoff are all included.

Client (Machine A, desktop)

• Add environment → Tailcat: paste a code, the main process starts tailcat forward on a reserved loopback port, probes readiness, then the existing descriptor → pairing → session path runs over http://127.0.0.1:<port>.
• New TailcatConnectionTarget persists the logical endpoint (address + remote port), never the ephemeral local port. Saved rows show "Tailcat · Direct / Relay", with a details dialog (forwarder status, path probe, restart, re-pair, copy diagnostics, forget).
• The client identity is encrypted with Electron safeStorage and only materialized as a 0600 temp file while a tailcat process starts. Web and mobile recognize codes and point to the desktop app.

Bundled runtime

• New packages/tailcat supervises resolve / serve / forward / ping with a version check against native/tailcat/manifest.json (pinned version + per-platform SHA-256). Resolution order: T3CODE_TAILCAT_BINARY override → bundled → PATH.
• scripts/fetch-tailcat.ts downloads pinned release assets (macOS builds from the pinned source, since upstream ships no darwin archive), verifies checksums, stages into desktop extraResources and the CLI dist, and --update <version> re-pins. No runtime downloads. CI validates the manifest; release workflows fetch per matrix.

Federation (protocol v1)

• Peer codes (t3c://peer/…) pair two environments with explicit, per-side scopes (environment.read, projects.read, runs.read, runs.start, runs.cancel, artifacts.read). Identity reuses the existing Ed25519 environment key; calls use a challenge/JWT assertion that yields an ordinary T3 session carrying the marker scope federation:peer with the peer's environment id as its subject, confined to the federation HTTP group and refused at /ws.
• Vertical slice: hello, projects, start / status / cancel run, event summaries, artifact refs and turn diffs with origin identity. Peers only see runs they started. Runs are ordinary threads on the executing environment. UI shows "Runs on · origin " on every run and artifact.
• CLI: t3 remote tailcat status|enable|disable|code|peers|revoke and t3 peer code|add|list|remove|projects|run --wait.

Docs: docs/user/tailcat.md, docs/internals/tailcat.md (lifecycle, threat model, upstream limitations), docs/internals/federation.md, and ADR 001.

Verification

• Typecheck clean for contracts, shared, tailcat, client-runtime, server, desktop, web, scripts, mobile. Targeted lint and format clean on changed files.
• The 28 test files this PR adds or touches: 456 tests pass, 12 of them desktop main-process tests (mocked spawner, TestClock-driven backoff), including a runtime timeout-race regression test. The single failure is the pre-existing build-desktop-artifact case noted below.
• Live, with the real Tailcat v0.5.0 binary: headless --tailcat server, client forward, token exchange with node key, allowlist relock, untrusted key denied, revoke → session revoked and key locked out, missing binary → unavailable, override honored.
• Two real machines: an x64 Linux host and a DGX Spark (arm64) paired over Tailcat with a direct LAN path; Codex runs started on each executed on the other and completed. A macOS arm64 DMG built from this branch (Tailcat built from pinned source) installed on a Mac mini; its packaged backend resolved the bundled binary and served, and the Electron forwarder connected to the Spark server (screenshots below).

Screenshots (macOS desktop, built from this branch)

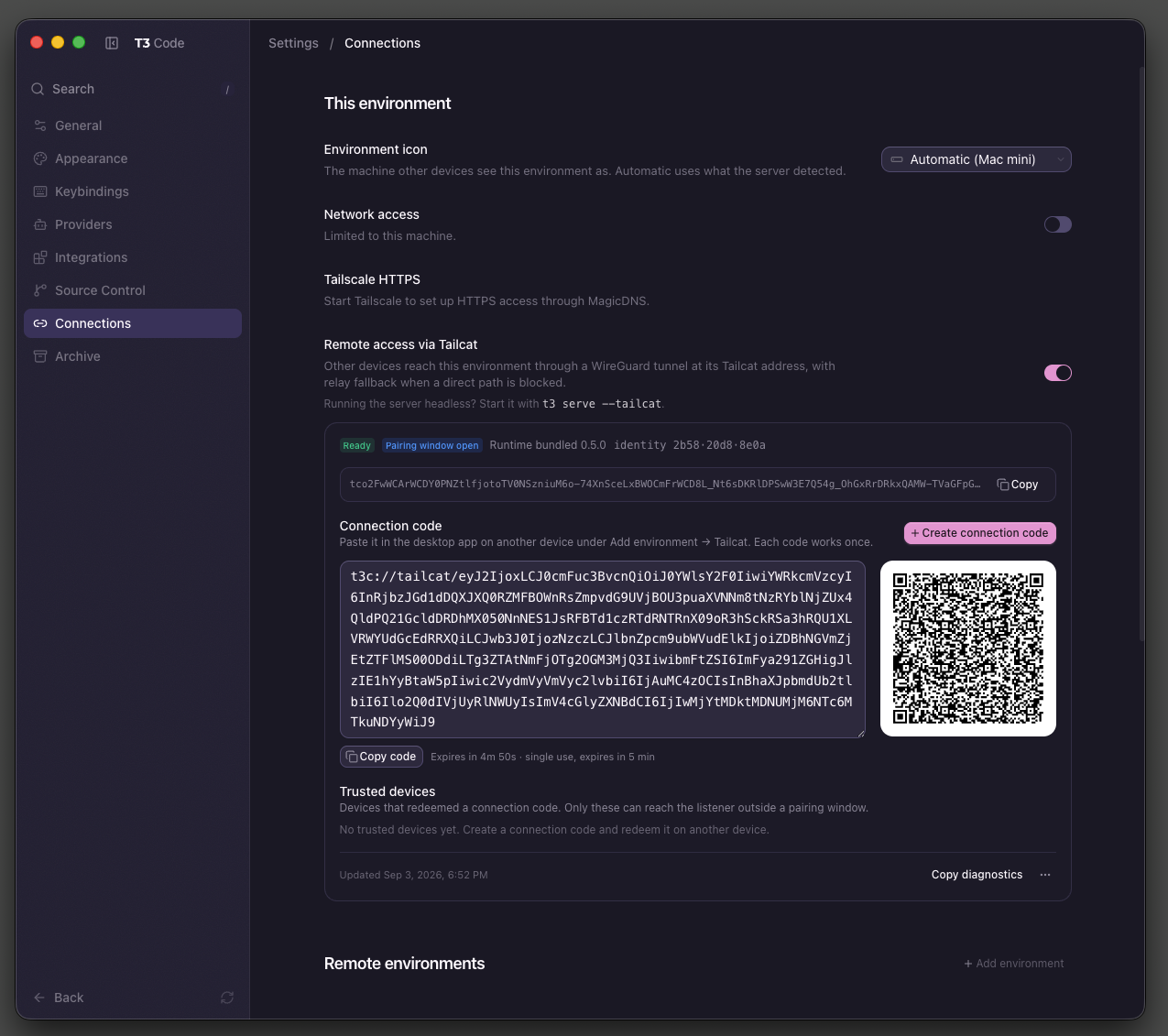

Remote access card with a code and QR (code expired):

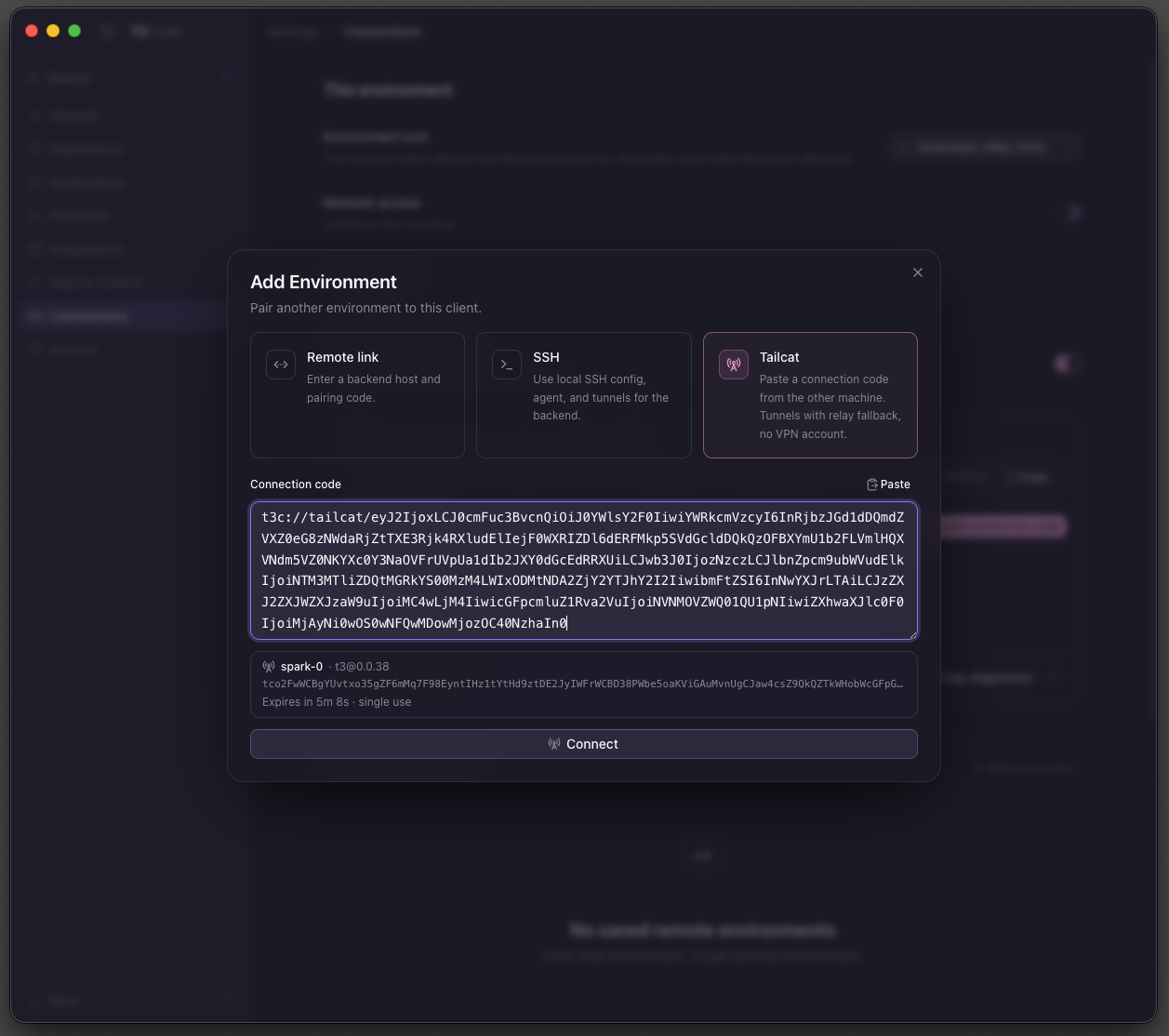

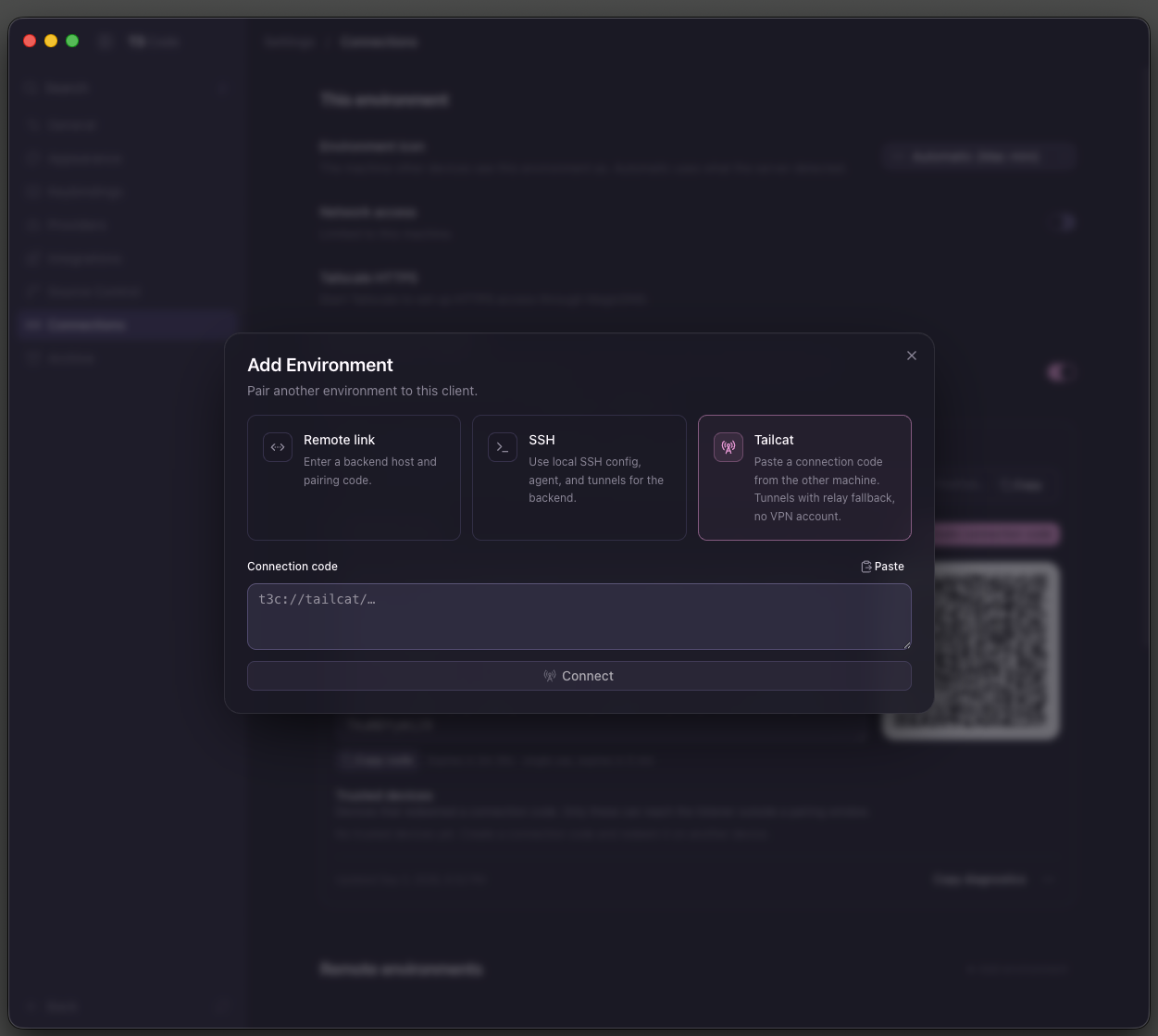

Add environment → Tailcat, empty and with a pasted code preview:

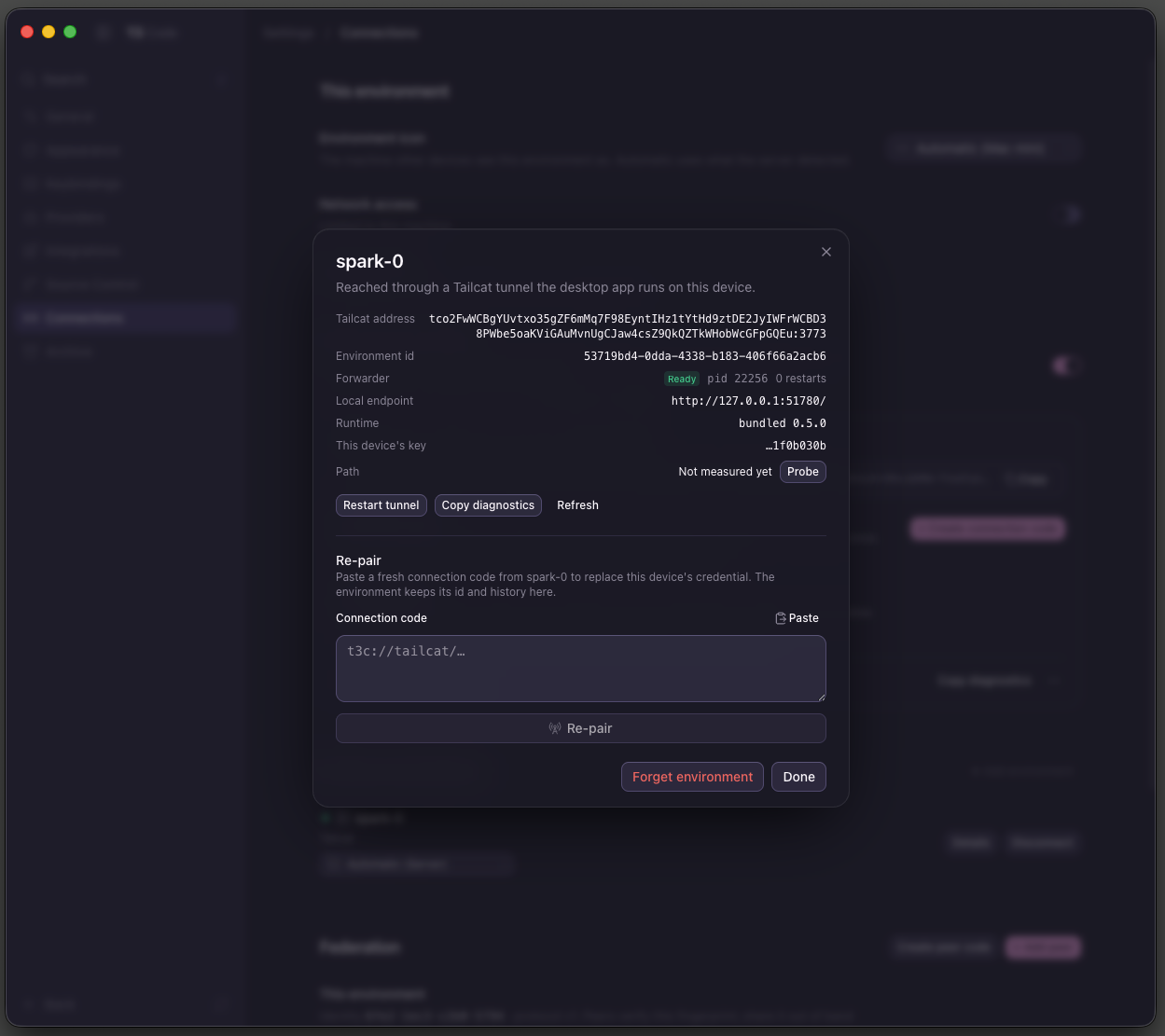

Saved Tailcat environment details after connecting to the Spark server:

Compatibility and notes for reviewers

• Opt-in everywhere: the toggle is off by default, --tailcat is explicit, and clients hide the UI unless the server advertises capabilities.tailcatRemoteAccess / capabilities.federation. Older desktop shells lack the optional bridge methods, so the Tailcat card is hidden there.
• Allowlist changes restart the Tailcat listener and drop tunnels; clients reconnect through the connection supervisor. Documented as an upstream limitation.
• Windows has not been exercised beyond typecheck and tests. macOS signing follows the resource-monitor precedent (unverified on a signed build).
• Shipping all six platform binaries in the npm package adds roughly 40 MB compressed; the platform list in apps/server/scripts/cli.ts is the knob if that is too much.
• scripts/build-desktop-artifact.test.ts has one pre-existing failure on Linux ("skips the primary native probe for cross-architecture Windows payloads") that reproduces on main.

Built with Claude Fable 5.1 in Claude Code.

🤖 Generated with Claude Code

Note

Add Tailcat remote-access transport and server-to-server federation

• Introduces the @t3tools/tailcat package providing address decoding, runtime supervision, version/manifest management, and typed errors for the Tailcat mesh transport
• Adds server-side Tailcat remote-access lifecycle (TailcatRemoteAccess), federation identity (Ed25519 challenge/sign), durable peer store, transport, and HTTP/WS RPC surfaces; server startup now launches Tailcat after port binding and prints a connection code in headless mode
• Adds CLI commands t3 remote tailcat and t3 peer that authenticate against the running server via short-lived admin sessions to manage remote access, peers, and delegated runs
• Extends client-runtime, web settings UI, desktop IPC, and mobile pairing with Tailcat connection profiles, onboarding flows, diagnostics, trusted-peer management, and federation peer/remote-run controls
• Adds build-time Tailcat runtime fetching/verification (scripts/fetch-tailcat.ts), desktop artifact staging, CI manifest validation, and release workflow steps for all platforms
• Risk: WebSocket RPC auth now rejects sessions carrying AuthFederationPeerScope in websocketRpcRouteLayer (apps/server/src/ws.ts); federation state files written before pending-code support are accepted with empty pending codes but older server versions cannot read the new pendingPeerCodes field. Bootstrap credential exchange (exchangeBootstrapCredential) now returns BootstrapCredentialExchange metadata in addition to the access token, and the auth HTTP handler records a trusted Tailcat peer on connection-code grants, logging (not failing) on record errors.

^{Macroscope summarized a162dcf.}

---

Note

High Risk
Changes authentication/token exchange, remote-access allowlisting, federation RPC authorization, and ships supervised native tunnel binaries across desktop, server, and npm publish paths.

Overview
Adds first-class Tailcat remote access and server federation on top of a new pinned, bundled @t3tools/tailcat runtime (native/tailcat/manifest.json, scripts/fetch-tailcat.ts, CI verify + release caching/source builds for macOS).

Desktop depends on @t3tools/tailcat, wires a main-process Tailcat environment (loopback tailcat forward, identity via encrypted safeStorage, diagnostics/restart IPC), and passes a resolved bundled binary path into the backend bootstrap so server and client share the same build.

Server gains tailcatEnabled / bootstrap tailcatBinaryPath, exchangeBootstrapCredential (grant + session metadata), and on token exchange records trusted Tailcat peers when a connection-code grant is redeemed with client_tailcat_node_key. RPC authorization maps new Tailcat admin and federation WebSocket methods to access/orchestration scopes. CLI: shared jsonFlag, t3 remote / t3 peer (federation over authenticated /ws RPC), npm publish stages all platform Tailcat binaries into dist/tailcat.

Mobile stubs TailcatEnvironmentGateway and rejects t3c:// codes in pairing with desktop-specific guidance instead of invalid-URL errors.

^{Reviewed by Cursor Bugbot for commit a162dcf. Bugbot is set up for automated code reviews on this repo. Configure here.}
