GroundTruth - PCB Analysis

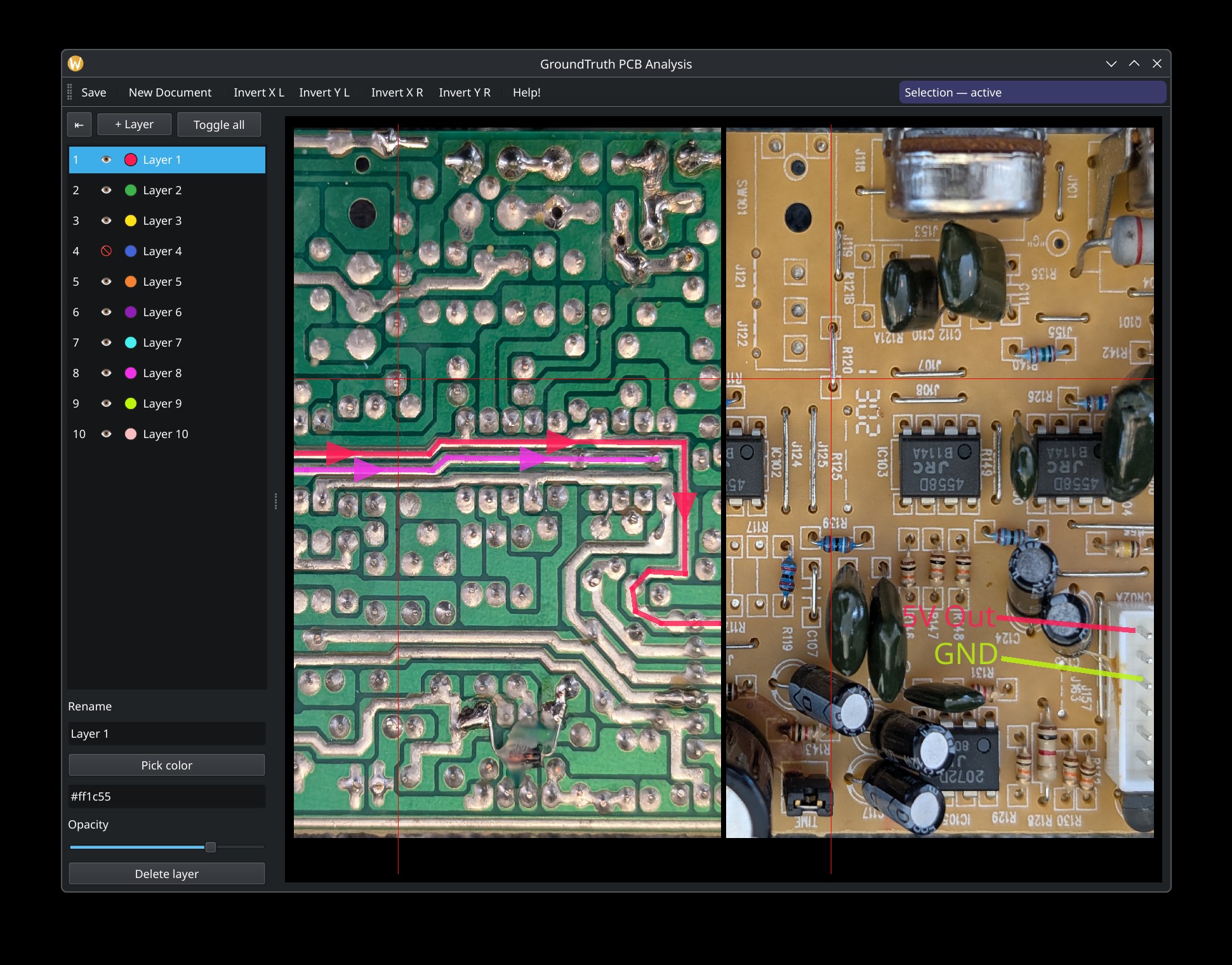

Ground Truth is a PCB analysis tool for inspecting, analyzing and annotating PCB images (front and back) side by side in synchronized views.

Contributions and pull requests are welcome! If you have a larger feature in mind please open an issue so we can discuss the implementation before you start.

⚠️ Note that the app is in early development and thus not feature complete but rich in bugs. At this point, savefile compatibility is not guaranteed when upgrading.

Running the app

• Clone the repo
• Create a python 3.14 virtual environment
• Install the dependencies from requirements.txt
• Run main.py

Tips

• Align your images in GIMP using the perspective transform before loading them in GroundTruth. Make sure the sides of the PCB are well aligned with the borders of the image.
• Read the help file (displayed when the first files are loaded) to learn about how to use the app.

Roadmap / Todo

• Add warning about savefile trust/safety
• Adjust the selection radius & hint line thickness based on annotation thickness
• Add box annotation tool
• Make keybindings user-editable via a config file
• Make annotation transparency uniform within a layer instead of additive
• Add back arrow annotation subtype
• Fix rotate functionality
• Add tests
• investigate the possibility of adding automatic netlist/schematic extraction and export to kicad format
