picojet

Real-time 3D software rasterisation on a Raspberry Pi Pico 2 W, rendering 320×200 in 16-bit direct colour to an ST7789 panel across both CPU cores.

Contents

• Components
• Hardware
• Programs
• Building
• Architecture
• Memory
• Assets
• Cloud background
• Configuration
• Measured performance
• Licence

Components

Component	Role	Licence
Jet	Fixed-point software rasteriser. Submodule.	MIT
picosdl	SDL2 subset for RP2040/RP2350: display, input, timing. Submodule.	BSD-2-Clause
pio-st7789	PIO/DMA ST7789 driver. Submodule of picosdl.	BSD-2-Clause
JetExamples	Example scenes for Jet. Nine are vendored under examples/.	MIT
picojet	This repository: application layer, asset pipeline, cloud renderer.	BSD-2-Clause

Hardware

Item	Detail
Board	Raspberry Pi Pico 2 W (RP2350: dual Cortex-M33 at 150 MHz, 520 KB SRAM, 4 MB flash)
Display	ST7789, 240×320, driven over PIO SPI with DMA
Input	Analogue joystick on the ADC, or an Adafruit Seesaw I2C gamepad
Programmer	CMSIS-DAP probe

Pin assignments are defined in picosdl/backend/pico/board.h.

The canvas is 320×200, letterboxed into the 240-pixel panel height at y=20. picosdl draws a status band in each remaining strip: frame rate and per-core load above, a caption below.

Programs

Program	Description
picojet	Model viewer. Nine textured meshes, displayed one at a time.

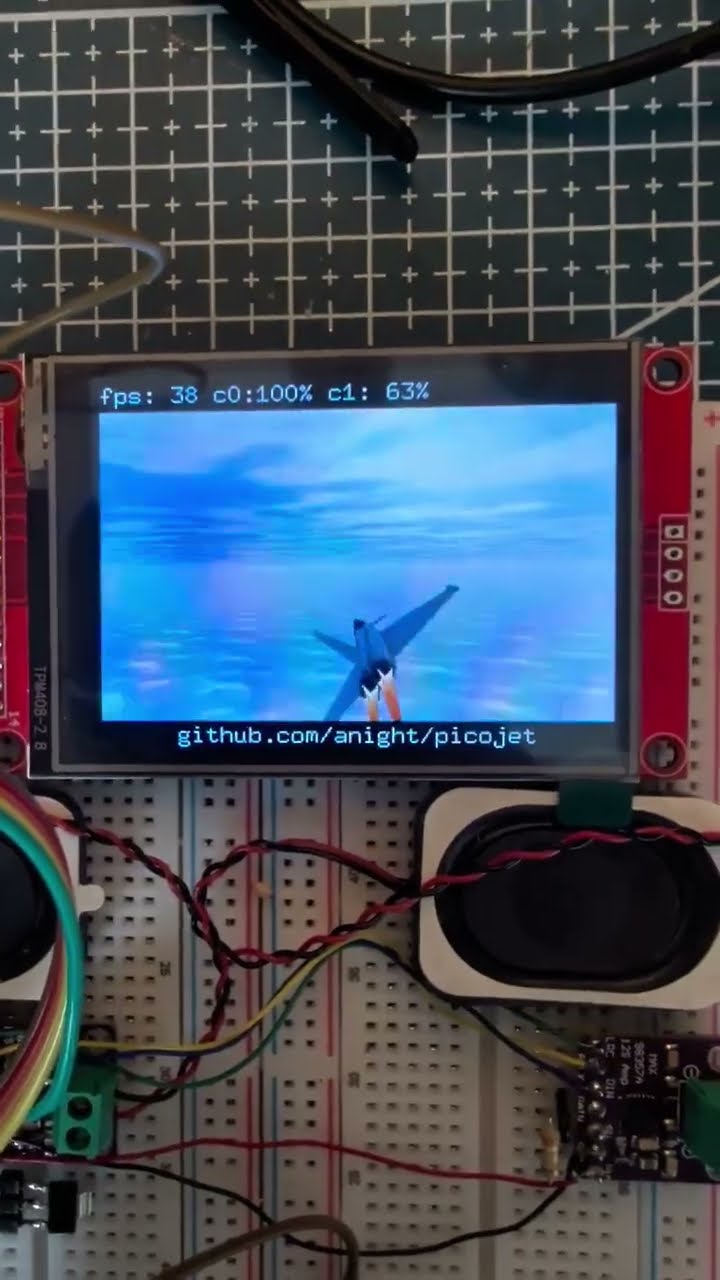

picojet-flight	Flight demonstration. A jet aircraft over a procedurally generated cloud deck.
example-*	Nine scenes from JetExamples, each a separate program.

picojet

The model advances every six seconds, or immediately on the gamepad's A button. It rotates continuously at 43°/s about X and 61°/s about Y, so that every face passes the camera within its display period.

The camera orbits the origin. Horizontal stick deflection controls azimuth, vertical deflection controls height. With the stick centred the camera drifts at 0.35 rad/s so that the board demonstrates itself unattended.

Model	Triangles	Source
cube	12	pikuma course renderer
radio	95	OpenGameArt, CC0
f117	134	pikuma
f22	200	pikuma
column	212	OpenGameArt, CC0
efa	224	pikuma
crab	476	pikuma
sphere	498	pikuma
biplane	597	OpenGameArt, CC0

picojet-flight

The aircraft is fixed at the centre of the frame and the world turns around it. Horizontal stick deflection is the only control. The A button, or the joystick's own click, cycles the aircraft.

Aircraft	Triangles	Exhaust plumes
F-22	200	2
EF-2000	224	2
F-117	134	0

Plume counts follow the aircraft. The F-22 and EF-2000 have two afterburning engines each. The F-117 has two engines and no afterburner: its exhausts are slots that mix efflux with cold air to suppress the infrared signature, so no flame is visible. Each nozzle position is taken from the vertex ring on the aft face of the engine in the mesh itself.

The biplane is absent from this program. Its render queue requires roughly two and a half times the memory of the largest aircraft here, which the cloud tables and the second framebuffer have already consumed.

Flight model. The stick commands a bank angle. The aircraft rolls toward it through a first-order lag, and the resulting bank produces the yaw rate. A single constant, ROLL_RESPONSE, is the only inertia term; heading inherits it. Full deflection corresponds to 55° of bank and 0.9 rad/s of yaw.

JetExamples

Nine of the sixteen JetExamples scenes, each built as its own program. They run unattended and take no input. Each keeps the renderer configuration it was written with, so together they exercise features the two programs above leave disabled: bilinear filtering, texture addressing modes, palette cycling, particles, level of detail, sprites, blending, water reflections and CRT post-processing.

Program	Scene	Demonstrates	Framebuffers
example-template-cube	Rotating cube	Minimal scene: camera and coloured geometry	2
example-particles	Particle Lab	Additive sparks, gravity-driven spray, alpha fades, fixed pools, distance culling	2
example-textured-boxes	Textured crate	Affine and perspective-correct mapping, nearest and bilinear sampling	2
example-texture-features	Texture Lab	Wrap, clamp and zero addressing, colour keys, palette cycling, texture LOD	2
example-postfx-crt	CRT / Arcade	Scanline post-processing	2
example-lod-billboards	Woodland	Distance-driven mesh simplification, billboard stand-ins, transition fading	2
example-sprite-controls	Air Mail	Sprite flips, per-material and per-sprite alpha, motion echoes, screen fades	2
example-tropical-island	Tropical island	Sky gradient, rippled water, reflections, additive sun sprites, lens flares	1
example-sprites-blending	After Hours	Additive glow meshes, sprite halos, translucent layers, mirrored-floor reflections	1

The last two run with one framebuffer, whose 128 KB their render queues need.

The scenes were authored for 480×320. Their projection is derived from the output size and adapts to 320×200; their on-screen captions are pre-rendered bitmaps at fixed coordinates, and those placed below row 200 are not visible.

The remaining seven do not fit in the RP2350's SRAM. Each was built and run on the board, and each exhausts the heap:

Scene	Where it runs out
Depth comparison, Utah teapot lighting, Cel / Teapot	First frame. The 128 KB depth buffer and a 64 KB scene leave too little for the render queue, even with one framebuffer.
Neon Motorworks	First frame, after 145 KB of scene parsed from its embedded OBJ model.
REPEAT, MATTER	While building the scene. Upstream places their bulk data in PSRAM.
ESP 88	Mid-film, at 5–6 fps, when a heavier scene is loaded.

Building

Requirements: the Raspberry Pi Pico SDK (PICO_SDK_PATH, or ~/.pico-sdk), CMake 3.13 or later, Ninja, and the arm-none-eabi toolchain.

git submodule update --init --recursive
cmake -S . -B build -G Ninja
cmake --build build

Flashing requires a CMSIS-DAP probe:

picosdl/picodev.sh flash-and-logs build/picojet.elf
picosdl/picodev.sh flash-and-logs build/picojet-flight.elf
picosdl/picodev.sh flash-and-logs build/example-tropical-island.elf

Architecture

Direct-colour path

Jet renders RGB565 and the ST7789 accepts RGB565. No stage between the rasteriser and the panel converts, repacks or copies a pixel: the DMA engine reads Jet's framebuffer directly.

This requires PSDL_COLOR_DEPTH=16 in picosdl, where a pixel is an RGB565 value and the client owns the buffer, and the 16bpp mode of pio-st7789, where the DMA hands framebuffer contents to the panel unaltered.

Dual-core rasterisation

Scene::render() accepts a RasterExecutor, a hook that replaces the raster pass and is required to join its workers and publish statistics before returning. With audio compiled out of picosdl, core 1 is available as a second rasteriser: core 0 prepares the frame and rasterises rows 0–99, core 1 rasterises rows 100–199.

This is safe because Z_BUFFERING is disabled. The two bands write disjoint rows and share no per-pixel state, which is the condition rasterizeBand() documents. Jet's own scene_texture_queue test, built against this JetConfig.hpp, confirms that banded output is identical to a whole-frame render across 144 frames.

The handshake uses the inter-core FIFO rather than a flag in memory. The FIFO is a hardware mailbox with ordering already guaranteed; an equivalent flag would require explicit memory barriers.

Both programs report per-core load through picosdl's PSDL_CpuIdle() and PSDL_CpuBusy(), which bracket each core's blocking waits. Load is the complement of the bracketed intervals.

Double buffering

Two framebuffers of 128,000 bytes each. Core 0 selects the buffer not currently being transmitted, polling PSDL_BufferBusy(), and rasterises into it while the DMA engine reads the other. Measured with a single buffer, core 0 spends approximately half of each frame blocked on the panel transfer.

PICOJET_FRAMEBUFFERS selects between one and two. At 1 the program waits with PSDL_PresentSync(), which picosdl accounts as idle time on the calling core.

JetExamples runtime

Upstream, each example supplies only its scene: init(Scene&) and update(seconds), passed to Esp32Jet::start(), whose ESP32 runtime owns the display, scanout and frame pacing. examples/runtime/ implements the same contract on picosdl, so the scene sources compile unmodified; the vendored directories are identical to upstream.

The frame follows upstream's order (update, render, effects, after-render, publish) and the design above: whole RGB565 frames, two framebuffers by default, and both cores rasterising a fixed half each. The ESP-IDF calls the scenes make are PSRAM placement hints, memory queries and esp_restart(); small headers in examples/runtime/ provide them.

One Jet build per example. JetConfig.hpp is a set of compile-time switches and the examples disagree about them, so Jet is compiled separately against each example's own configuration. examples/runtime/JetConfigPico.hpp then overrides only the frame layout: upstream renders half-width interlaced fields for its scanout, this panel receives whole frames.

Reflections read the previous frame. WATER_REFLECT materials sample reflectBuffer, which the runtime points at the buffer on the panel: a finished image that neither core writes. Reflections of the frame being drawn could read rows the other core has not reached, so with one framebuffer, where no previous frame exists, the raster pass stays on one core, as upstream does in the same case.

System clock

PICOJET_SYS_CLOCK_KHZ defaults to 150000, the RP2350 SDK default.

The ST7789 driver derives SCK from a PIO side-set at a clock divider of 1, so SCK is always half the system clock: 75 MHz against a rated maximum of 62.5 MHz, an overclock of 20%.

The frame is bounded by this link rather than by the processor. Raising the clock from 125 MHz to 150 MHz shortens the panel transfer from 17.4 ms to 14.5 ms and raises the observed ceiling from 57 fps to 68 fps.

Tolerance of the overclock varies between panels. A panel that does not tolerate it displays torn, speckled or shifted pixels rather than failing outright. Build with -DPICOJET_SYS_CLOCK_KHZ=125000 for an in-specification clock at both ends.

Memory

The RP2350 provides 520 KB of SRAM, of which the two framebuffers occupy 250 KB.

Program	.text	.bss	Configured heap
picojet	659,444	343,312	163,840
picojet-flight	359,772	397,924	49,152

Jet allocates from the heap in two places. Object holds the mesh in std::vector members, and Scene builds a per-frame render queue containing every submitted triangle, at approximately 128 bytes per triangle across its three vectors. Exceptions are disabled, so a failed allocation terminates the program rather than returning.

Two consequences govern how both programs load meshes.

1. A mesh must be budgeted before it is constructed. picojet checks the projected cost in model_ram() and reports models that do not fit rather than attempting them. The check accounts for the whole scene's triangles, because the render queue is per frame and not per object.

2. The largest mesh is loaded first. The render queue requires one contiguous allocation and retains whatever capacity it reaches. Grown while the heap is unfragmented it reaches its maximum immediately; grown after several meshes of differing sizes have been allocated and freed, the same request fails with sufficient total free memory but no adjacent block.

picojet-flight additionally reserves both mesh vectors for the largest aircraft in its table before loading any of them. Because std::vector retains capacity across clear(), changing aircraft performs no allocation at all.

Textures are read-only and remain in flash, at no cost in SRAM.

Assets

tools/convert_assets.py converts .obj and .png files into C arrays. There is no filesystem on the target, and Jet's own ObjLoader reads from files.

The converter performs three transformations:

• De-indexing. An .obj file indexes position, texture coordinate and normal separately, whereas Jet's Object holds a single vertex array carrying all three.
• Normalisation by bounding sphere. Scaling to a common bounding sphere radius, rather than to a common longest axis, makes models appear comparably sized. A cube fills its bounding box; an aircraft is largely empty space around a wingspan. Matching widths leaves the cube substantially larger on screen, and larger still once rotated onto its diagonal.
• V-axis inversion. .obj texture coordinates run bottom-up; Jet samples top-down.

Textures are emitted as 128×128 RGB565 arrays.

Meshes exceeding a triangle budget can be reduced by vertex clustering (--max-tris). The technique degrades organic shapes acceptably and hard-surface shapes badly, because clustering merges across precisely the creases that define a panelled model. Two options exist for colour-atlas textures, which consist of flat patches with every vertex addressing the centre of one: each cluster takes its texture coordinate from the member vertex nearest the cluster centre rather than from an average, since an averaged coordinate falls between patches; and --tex-nearest resamples without filtering, since smoothing an atlas bleeds adjacent patches across their boundaries.

To regenerate the assets:

python3 tools/convert_assets.py --assets <dir> --out app/assets \
    --tex-size 128 --mesh-scale 270 --max-tris 600

Cloud background

app/clouds.cpp renders a full-screen cloud deck. It writes every pixel it is given, so Jet's buffer clear is disabled and the sky replaces it. tools/clouds.c is the reference implementation the port derives from.

The scene comprises two horizontal planes above the camera and one below, textured with a precomputed tileable fBm noise tile of 128×128 texels and a four-level mip chain. For a pinhole camera the distance to a horizontal plane is constant along a scanline and the texture coordinate is linear in x, so a row costs one division of setup followed by one addition per axis per pixel. The inner loop is entirely 16.16 fixed-point integer arithmetic; floating point appears only in per-row setup.

Colour is never computed per pixel. A lookup table indexed by fog band and density is built once and already incorporates the sky gradient, cloud shading, coverage curve and distance haze, so a pixel costs two texture fetches and one table lookup.

Both renderers must project identically, or the aircraft will not appear to occupy the sky. The cloud renderer uses a focal length of 220 pixels; Jet's setFOV() derives its own factor as (screenWidth/2) / tan(fov/2). Solving for 220 across a 320-pixel width gives a field of view of 72°.

The camera is raised above the aircraft and held level. It is never pitched: the cloud renderer fixes its horizon at the middle row and has no concept of pitch, so tilting Jet's camera would separate the two. Camera height and distance scale together, since the aircraft's displacement below the horizon is height × focal / distance.

Bilinear filtering is the dominant cost. FILT_DUT is the threshold in texels per pixel above which a row is filtered. Rows near the viewer require it; beyond that distance the mip chain already resolves the detail and interpolation averages nearly equal texels.

FILT_DUT	Cloud pass	Frame rate
0.75	30 ms	29 fps
0.42	21 ms	38 fps
0.25 (default)	14 ms	57 fps
disabled	13 ms	60 fps

Configuration

Build options

Option	Default	Effect
PICOJET_FRAMEBUFFERS	2	Framebuffers cycled by the renderer, 1 or 2
PICOJET_SYS_CLOCK_KHZ	150000	System clock; 125000 keeps the panel within specification

The build forces the following picosdl options: PICOSDL_COLOR_DEPTH=16, PICOSDL_AUDIO=OFF (core 1 is the second rasteriser), PICOSDL_INPUT_BT_KEYBOARD=OFF, PICOSDL_INPUT_JOYSTICK=ON, PICOSDL_INPUT_GAMEPAD=ON.

Renderer configuration

app/JetConfig.hpp carries the full set with per-option reasoning. The settings that determine the rest:

Setting	Value	Rationale
HALF_WIDTH_BUFFERS	0	The panel requires 320 full-width pixels per row. A half-width buffer would oblige the CPU to duplicate every pixel on output, which is the copy this design exists to avoid.
Z_BUFFERING	0	Saves 128 KB and permits the two-core split.
SORT_TRIANGLES	1	Painter's algorithm in place of a depth buffer.
LIGHTING	1	Directional and ambient lighting, Gouraud interpolation.
PERSPECTIVE_CORRECT_TEXTURES	1	One division per pixel. Measures as free, the frame being bound by the panel link. Affine interpolation leaves texels sliding across a face as it turns.
BILINEAR_FILTER	0	Texture magnification is point-sampled.
SCREEN_DOOR_ALPHA	1	Transparency by ordered dither, avoiding a read-modify-write per pixel.
POSTFX_*	0	All post-processing disabled.

The first two together forfeit JET_FAST_SIMPLE_SPANS, Jet's fastest raster path, which requires HALF_WIDTH_BUFFERS and !LIGHTING. Neither condition is acceptable on this target.

Measured performance

At 150 MHz with two framebuffers. Ranges reflect the varying screen coverage as each model rotates; the upper bound of 68 fps is the panel link's ceiling.

picojet model	Triangles	Frame rate
cube	12	43–55
radio	95	60–68
f117	134	67–68
f22	200	67–68
column	212	50–62
efa	224	65–68
crab	476	34–65
sphere	498	29–31
biplane	597	48–67

JetExamples scene	Frame rate	Peak heap
Rotating cube	68–69	4 KB
Particle Lab	67–69	53 KB
Textured crate	26–68	5 KB
Texture Lab	24–28	9 KB
CRT / Arcade	23–28	7 KB
Woodland	24–32	94 KB
Air Mail	21–26	108 KB
Tropical island	19–23	123 KB
After Hours	9–18	179 KB

Ranges span the modes each scene cycles through. The heap available is about 180 KB with two framebuffers and about 305 KB with one.

picojet-flight runs at 33–58 fps. Unlike the viewer it is bound by the processor rather than the panel, and the cloud pass dominates: of a 21.5 ms frame, 17.5 ms is the two-core raster pass, 2.0 ms the transform and sort, 1.4 ms input polling, and 0.2 ms the panel handover.

Licence

picojet is distributed under BSD-2-Clause. See LICENSE.

Dependencies retain their own terms. Jet is MIT, and its copyright notice must accompany any binary built from this repository; the same applies to the JetExamples scenes under examples/, whose MIT licence is in examples/LICENSE. picosdl and pio-st7789 are BSD-2-Clause. Imported models are CC0 or originate from the pikuma course renderer.
