Hierarchy Control

You might be aware that the standard control showing the Hierarchy will be removed from the platform by October 2025 (more info).

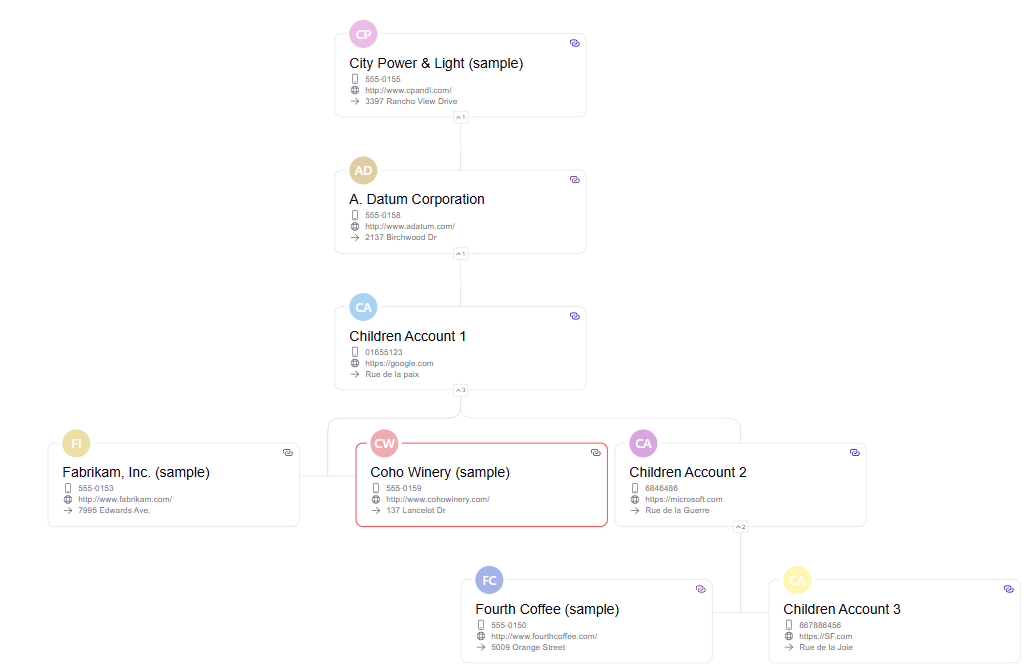

So I've decided to resolve the issue by creating it as a PCF control. Sample implementation with the account table :

Here are the steps to configure and use the control :

• Download the latest solution

• Make sure that the Table has a "Hierarchy relationship" enabled (details)

• Here are the parameters to prepare the control :

Parameter	Description	Required
hostingField	Field to attach the control (text field)	x
JsonMapping	JSON data containing the parameters which allow the control to work	x

JSON Details : (sample with the account table)

{
	"parentField" : "parentaccountid",  REQUIRED - Parent Record Field Link to the same Account Table (with the Hierarchy relationship enabled)
	"recordIdField" : "accountid",      REQUIRED - Primary Field of the Account table
	"mapping" : {
      "name" : "name",                REQUIRED - Primary name displayed in the card
      "attribute1" : "telephone1",    OPTIONAL - First attribute displayed in the card
      "attribute2" : "websiteurl",    OPTIONAL - Second attribute displayed in the card
      "attribute3" : "address1_line1" OPTIONAL - Thrid attribute displayed in the card
    },
	"properties" : {
		"height": 450,    OPTIONAL - Force the Height in px (By default use the height available)
		"width": 1230     OPTIONAL - Force the Width in px (By default use the full width available)
	}
}

Here is how it will looking between the mapping and the rendering :

Each data type will have it's own icon next to the value.

Advice for the configuration

• Hide the field label

• Keep a tab with one column in order to have to most of the space

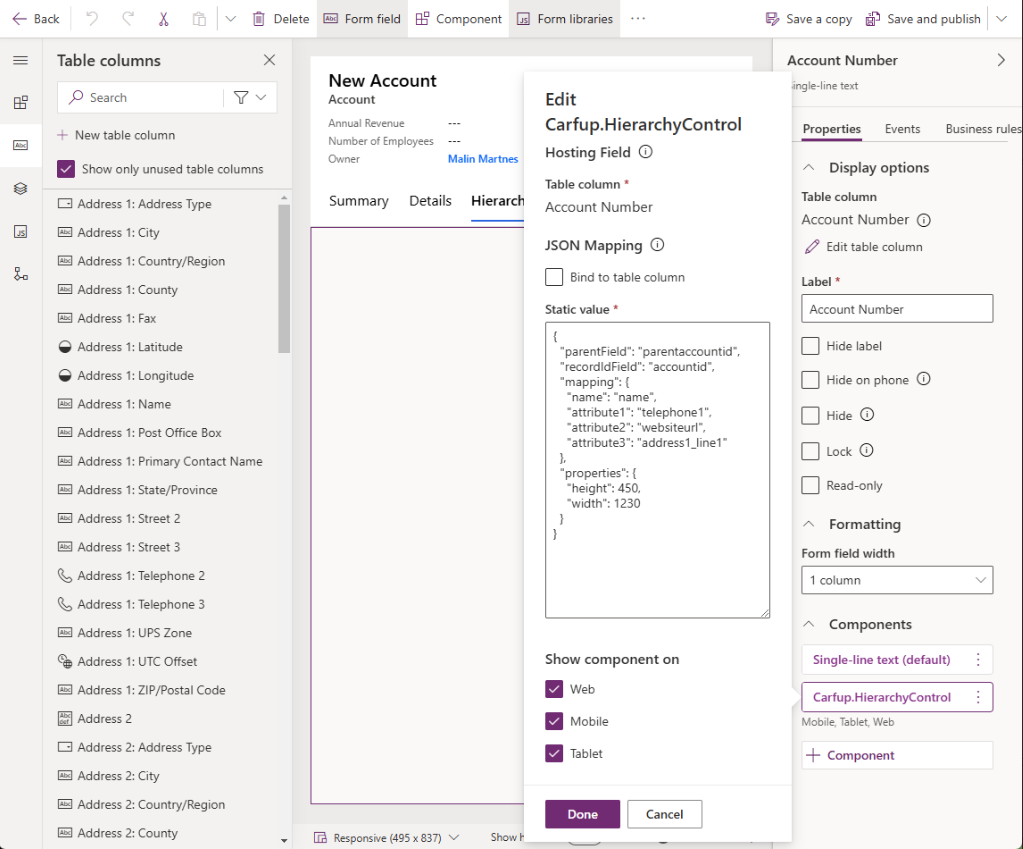

• Configuration sample on the form level :
